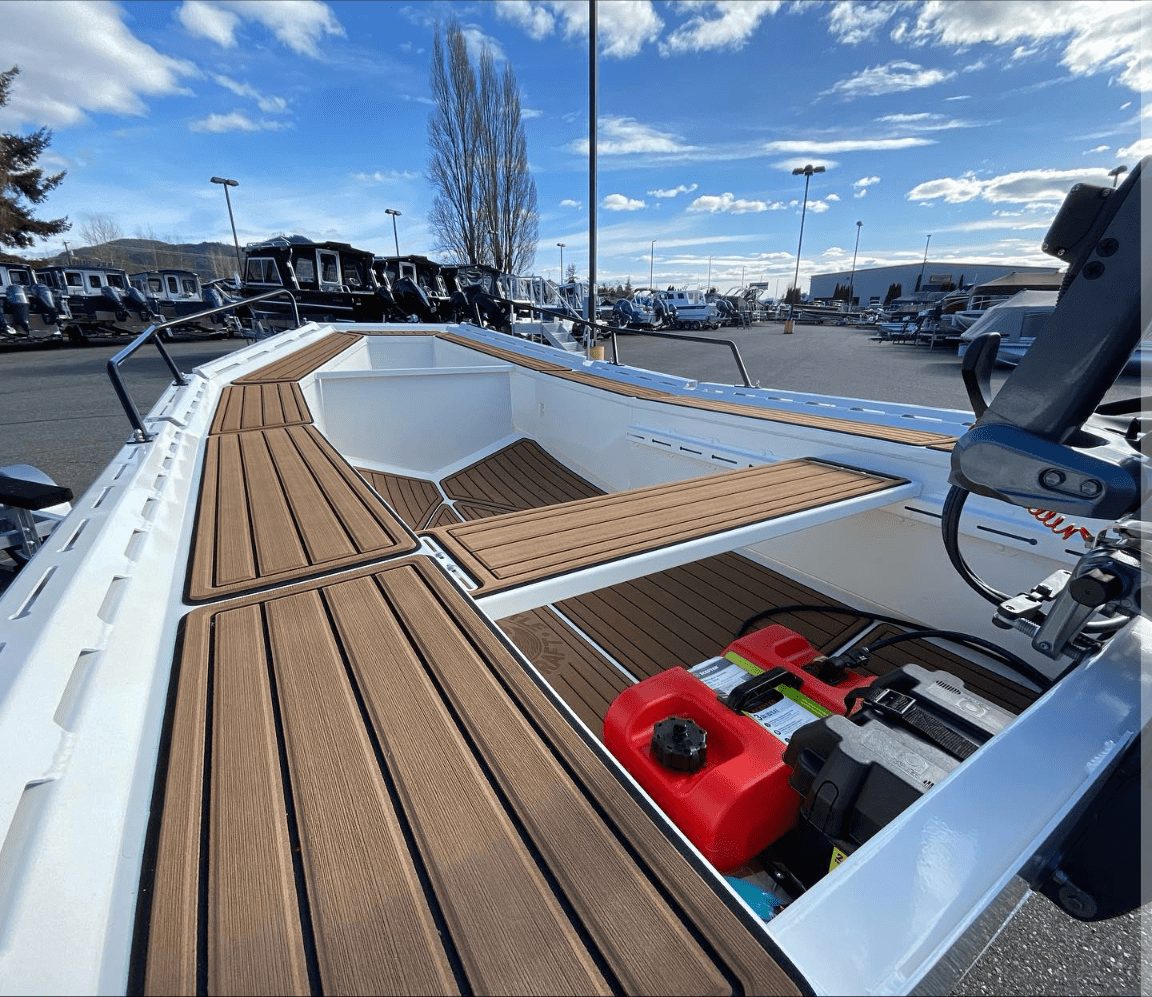

8’6″ MODEL FW109
The FW109 is an ideal tender for larger yachts or a robust fishing platform for the solo angler. Its open hull design, convenient bow storage, and side cubbies offer ample gear space. Customizable with a modular swing-away steering console, the FW109 is as versatile as it is efficient.
The FW109 is an ideal tender for larger yachts or a robust fishing platform for the solo angler. Its open hull design, convenient bow storage, and side cubbies offer ample gear space. Customizable with a modular swing-away steering console, the FW109 is as versatile as it is efficient.
The FW109 is an ideal tender for larger yachts or a robust fishing platform for the solo angler. Its open hull design, convenient bow storage, and side cubbies offer ample gear space. Customizable with a modular swing-away steering console, the FW109 is as versatile as it is efficient.
Features
Open hull
Open bow storage (fuel tank or anchor) and starting battery mount
Perfect fit for swim platform or upper deck stored tenders on 14M/30ft or larger power and sail yachts
Excellent small fishing platform
Four davit lifting points
Stern grab handles
Specifications
Hull Length: 2.76M/9'1"
Beam: 1.82M/6'0"
Dry Weight: 137kg/302lbs
USCG Load Capacity/Persons: 365kg/805lbs gross, 4 persons
Max HP/Outboard Weight: 25hp for 109 and 127hp, 68kg/150lbs
Recommended Prop Pitch: 9x12 to 10x14
Hull Thickness
Bottom: 3mm/.125"
Pontoons: 2.5mm/.100"
Transom: 3mm/.125
Sheet: 5000 Series
Extrusions: 6000 Series
Steering Control: Tiller or optional swing away console
